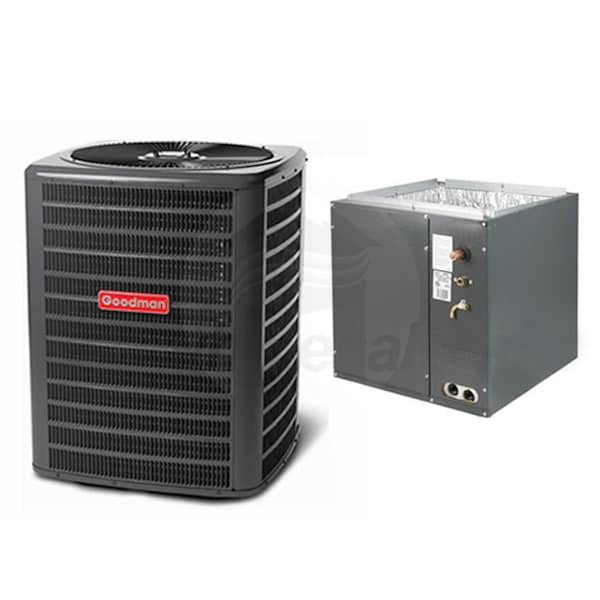

Goodman - 3 Ton Air Conditioner + Coil Kit - 14.5 SEER - 21" Coil Width - For Upflow/Downflow Installation

Model: GSX1437CAPT3743C4-V Item Number: 81772
Goodman GSX1437CAPT3743C4-V
PREVIOUS
NEXT
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Enlarge Image
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
Goodman GSX1437CAPT3743C4-V
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Operating Mode
    Cooling
    Refrigerant Type
    R-410A
    Coil Width
    21 Inches
Bundle Includes 2 items
  • product image
    (1) Goodman GSX14 - 3 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (GSX140371)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPT3743C4)
Orientation
Learn More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Select Attribute
Cooling Capacity (BTU/Hr)
Select Attribute
Coil Width (Inches)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1437CAPT3743C4-V

The Goodman GSX1437CAPT3743C4-V kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSX14 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CAPT3743C4 evaporator coil fits directly onto your existing 21" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSX14's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Filter Drier
  • A filter drier is installed in the liquid line of the air conditioner to remove moisture and trap impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Secure Cabinet
  • The cabinet of the GSX14 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • Durable Evaporator Coil
  • A galvanized, embossed, and insulated cabinet protects the evaporator coil and prevents air leakage, providing superior efficiency over years of use.
  • Internal Thermostatic Expansion Valve
  • The CAPT3743C4 has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Condensate Management
  • The included evaporator coil features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed condenser fan of the GSX14 were designed to reduce noise levels without compromising performance.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 2 items
    • product kit image
      Goodman GSX14 - 3 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region
      Model: GSX140371
      Item Number: 26630
      Quantity: 1
    • product kit image
      Goodman 3 to 3.5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil
      Model: CAPT3743C4
      Item Number: 26443
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Coil Width
    21 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling Capacity
    34000 BTU
    Nominal Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.2
    Dimensions
    Shipping Weight
    262 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7516954
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.2
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    73 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    19 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 1/2 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    162 Pounds
    Shipping Weight
    180 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPT
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 - 3.5 Tons
    Cooling BTU
    42000
    Nominal Minimum Cooling Capacity
    36000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    63 Pounds
    Shipping Weight
    73 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
