Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.5 SEER - 96% AFUE - For Horizontal Installation

Model: GSX1430GMEC96080H Item Number: 75552
Ask a Question
Goodman GSX1430GMEC96080H
PREVIOUS
NEXT
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Enlarge Image
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
Goodman GSX1430GMEC96080H
View All
Originally $3,330.00
Add to Cart for Lower Price
synchrony card icon
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.5 SEER - 96% AFUE - For Horizontal Installation
Goodman - 2.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.5 SEER - 96% AFUE - For Horizontal Installation Model: GSX1430GMEC96080H Item Number: 75552
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    345 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More

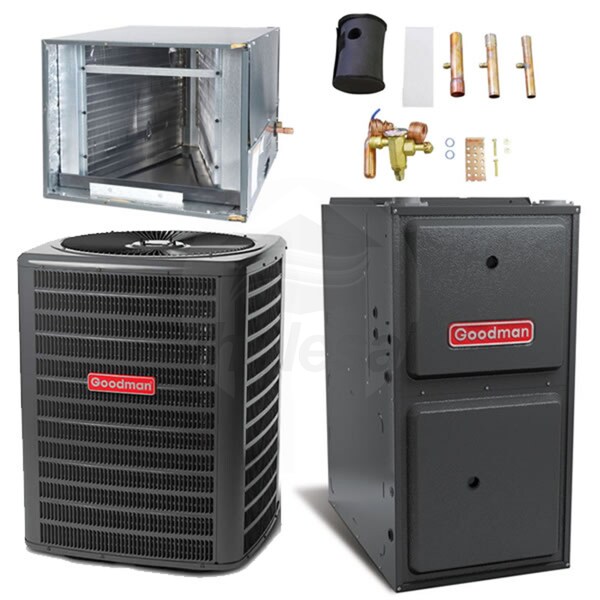

Bundle Includes 4 items
  • product image
    (1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960803BN)
  • product image
    (1) Goodman 2.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140311)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3642C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1430GMEC96080H

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX14 air conditioner, a GMEC96 furnace, and a cased evaporator coil. Living in the north, you often face cold winters and mild summers. The GSX14 provides you with the cooling you'll need but the GMEC96 is why you chose this kit. It provides you with efficient two-stage heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1430GMEC96080H air conditioner and furnace kit fits the bill perfectly.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. This kit contains a furnace that is narrower than the coil supplied. The included Z-bracket should be used to make the connection between the furnace and coil. Please see the coil installation manual under the "Manuals" tab for more information.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
GMEC960803BN Specifications
GSX140311 Specifications
CHPF3642C6 Specifications
TX3N4 Specifications
General Information
Operating Mode Learn More
Heating and Cooling
Modulating/Staging Learn More
Two Stage
Blower Motor
ECM Multi-Speed
Coil Width
21 Inches
Configuration Learn More
Horizontal
DOE Regional Compliance Learn More
Nationwide (Except CA, TX and UT)
Performance
AFUE Learn More
96 %
Capacity Learn More
2.5 Tons
Cooling Capacity
28400 BTU
Heating BTU
80000
SEER Learn More
14.5
EER Learn More
12.2
Maximum Air Flow
950 CFM
Dimensions
Product Weight
345 Pounds
Shipping Weight
363 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7516551
General Information
Type
Gas Furnace
Product Line
GMEC96
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Direct Vent
Modulating/Staging Learn More
Two Stage
Blower Motor
ECM Multi-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
96 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
76800 BTU
Low Fire Input
56000 BTU
Low Fire Output
53760 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
118 Pounds
Shipping Weight
118 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7423788
Warranty Information
Unit Replacement Warranty
10 Years
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Condenser
Product Line
GSX14
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER Learn More
14.0
EER Learn More
12.2
Maximum Sound Level Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
162 Pounds
Shipping Weight
180 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
General Information
Type
TXV Kit
Product Line
TX
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
