Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating Air Conditioner + Multi Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation

Model: GSX14030 CAPF3743 GMEC961005 Item Number: 90993
Ask a Question
Goodman GSX14030 CAPF3743 GMEC961005
PREVIOUS
NEXT
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Enlarge Image
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
Goodman GSX14030 CAPF3743 GMEC961005
View All
Originally $3,644.00
Add to Cart for Lower Price
synchrony card icon
$58 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Backordered
Estimated Availability January 13, 2022
Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating Air Conditioner + Multi Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation
Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating Air Conditioner + Multi Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation Model: GSX14030 CAPF3743 GMEC961005 Item Number: 90993
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    357 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More

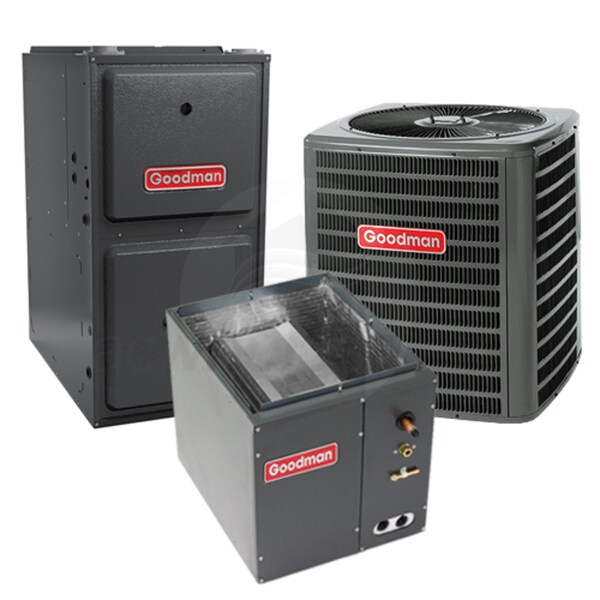

Bundle Includes 3 items
  • product image
    (1) Goodman 96% AFUE 100,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC961005CN)
  • product image
    (1) Goodman 2.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140301)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3743C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX14030 CAPF3743 GMEC961005

Overview for Goodman GSX140421 Air Conditioner CondenserYou can count on The Goodman GSX140421 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if That's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. The Goodman GSX14 GSX140421 Air Conditioner Condensers The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable The Goodman GSX140421 will keep you as cool as a cucumber Known as the best air conditioner the Goodman GSX140421 is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX14 GSX140421 is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend That's designed to stay for many years. Goodman brand air conditioners and heaters such as the GSX140421 take pride in its company heritage. Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX140421 air conditioners ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. When you think of the Goodman GSX140421 air conditioner condenser consider it as the art of precision Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140421 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units. Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140421 air conditioners simply work the way they're supposed to, making each one a thing of beauty. Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant. Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements. Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers. Overview for Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator CoilThe Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.Using this Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is a breeze.The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.The Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products.Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.Goodman takes pride in its company heritage when manufacturing the Goodman CAPF3743C6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil.Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.Overview for Goodman GMVC80603BX 80% AFUE 60,000 BTU Upflow 2 Stage Variable Speed Gas Furnace HeaterIf you want we consider the best 80% AFUE gas furnace that the Goodman brand offers, but don't need the efficiency provided by a 90% furnace, install this furnace and enjoy the energy and money savings year after year. This gas furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home. Overview for Goodman GMEC961005CN 96% AFUEThe Goodman GMEC96 High-Efficiency Gas Furnace with two-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. This gas furnace has an AFUE rating of up to 96%, which means that up to 96 cents of every $1.00 of heating energy expense warms your home. The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961005CN Gas Furnace Heaters. The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman Gas Furnace Heaters live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable. The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961005CN Gas Furnace Heaters will keep you as warm as you wish. The best gas furnace heater is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961005CN is loaded with features designed to provide outstanding performance for years to come. Goodman Gas Furnaces use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy efficient warming trend That's designed to stay for many years. Do high utility bills make you hot blooded? Turn to a Goodman GMEC961005CN Gas Furnace! High heating bills burn us up, too. Goodman offers a complete line of gas furnace heaters that are priced to help add comfort to your budget. Goodman wants you to smile every time you open your utility bill, so Goodman designed the GMEC961005CN gas furnace units with proven energy efficient technology. Goodman brand heaters and air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman brand heaters such as the GMEC961005CN Gas furnace take pride in its company heritage. The Goodman GMEC961005CN air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. The Goodman GMEC961005CN gas furnaces simply work the way they're supposed to, making each one a thing of beauty. When you talk about the Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961005CN It's considered as the art of precision. Heavy-Duty Aluminized-Steel Heat Exchanger - Distinctive tubular aluminized-steel construction formed using wrinkle bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency. Two-Stage Gas Valve - The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible GMEC961005CN reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves. Goodman gas furnaces simply work the way they're supposed to, making each one a thing of beauty. Multi-Speed ECM Motor - Automatically adjusts airflow to match comfort needs, reduces energy consumption and system noise as compared to single-stage motors. Quiet, Two-Speed, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace. Durable 110-Volt Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light. Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GMEC961005CN furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961005CN gas furnace. Thermally Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.
  • The manufacturer model number(s): Goodman GSX140301 GMEC961005CN CAPF3743C6
  • AHRI Reference Number: 205075746 * *May change based on the Manufacturer revision
  • Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GMEC961005CN Specifications
    GSX140301 Specifications
    CAPF3743C6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    2.5 Tons
    Cooling Capacity
    28800 BTU
    Nominal Cooling Capacity
    30000 BTU
    Heating BTU
    100000
    SEER Learn More
    14.0
    EER Learn More
    11.5
    Maximum Air Flow
    1000 CFM
    Dimensions
    Product Weight
    357 Pounds
    Shipping Weight
    375 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205075746
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    96000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    67200 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    13.3 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    140 Pounds
    Shipping Weight
    140 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    9101245
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    North and Southeast
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling BTU
    30000
    Cooling Capacity
    30000 BTU
    SEER Learn More
    14.0
    EER Learn More
    12.0
    Maximum Sound Level Learn More
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    17 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 1/2 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    162 Pounds
    Shipping Weight
    180 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.0 - 3.5 Tons
    Cooling BTU
    42000
    Nominal Minimum Cooling Capacity
    36000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    63 Pounds
    Shipping Weight
    73 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
