Goodman 1.5 Ton 15 SEER 96% AFUE Gas Electric Air Conditioner System

Model: GSX140191 GMEC960803BN CAPF3636B6 TX2N4A Item Number: 75805
Ask a Question
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
PREVIOUS
NEXT
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Enlarge Image
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
View All
Originally $2,899.00
Add to Cart for Lower Price
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 2-5 Business Days
Goodman 1.5 Ton 15 SEER 96% AFUE Gas Electric Air Conditioner System
Goodman 1.5 Ton 15 SEER 96% AFUE Gas Electric Air Conditioner System Model: GSX140191 GMEC960803BN CAPF3636B6 TX2N4A Item Number: 75805
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    295 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More

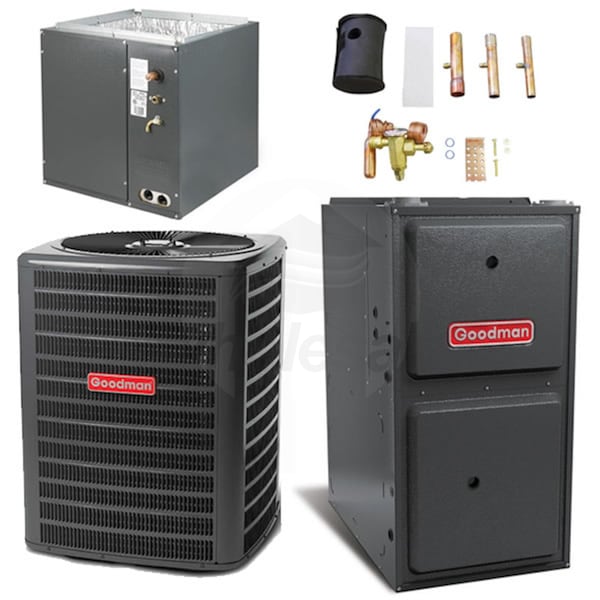

Bundle Includes 4 items
  • (1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960803BN)
  • (1) Goodman 1.5 Ton 14 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX140191)
  • (1) Goodman 3 Ton 17.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3636B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX14 air conditioner, a GMEC96 furnace, and a cased evaporator coil. Living in the north, you often face cold winters and mild summers. The GSX14 provides you with the cooling you'll need but the GMEC96 is why you chose this kit. It provides you with efficient two-stage heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1418GMEC96080U air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX140191 GMEC960803BN CAPF3636B6 TX2N4A
  • AHRI Reference Number: 7515752 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    GMEC960803BN Specifications
    GSX140191 Specifications
    CAPF3636B6 Specifications
    TX2N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    1.5 Tons
    Cooling Capacity
    17800 BTU
    Nominal Cooling Capacity
    18000 BTU
    Heating BTU
    80000
    SEER Learn More
    15.0
    EER Learn More
    12.0
    Maximum Air Flow
    540 CFM
    Dimensions
    Product Weight
    295 Pounds
    Shipping Weight
    310 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7515752
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    76800 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    53760 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    118 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7423788
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    1.5 Tons
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    14.0
    EER Learn More
    12.2
    Maximum Sound Level Learn More
    71 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    27 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    26 Inches
    Product Weight
    131 Pounds
    Shipping Weight
    146 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.0 Tons
    Cooling BTU
    36000
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    22 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    44 Pounds
    Shipping Weight
    54 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
