Goodman - 3.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Downflow Installation

Model: GSX1342GCVM97080D Item Number: 81089
Ask a Question
Goodman GSX1342GCVM97080D
PREVIOUS
NEXT
Goodman GSX1342GCVM97080D
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Enlarge Image
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Watch Video
Goodman GSX1342GCVM97080D
Watch Video
Goodman GSX1342GCVM97080D
Watch Video
Goodman GSX1342GCVM97080D
Watch Video
Goodman GSX1342GCVM97080D
Watch Video
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
Goodman GSX1342GCVM97080D
View All
Originally $4,413.00
Add to Cart for Lower Price
synchrony card icon
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 3.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Downflow Installation
Goodman - 3.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Downflow Installation Model: GSX1342GCVM97080D Item Number: 81089
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    378 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Modulating
View More
Bundle Includes 3 items
  • product image

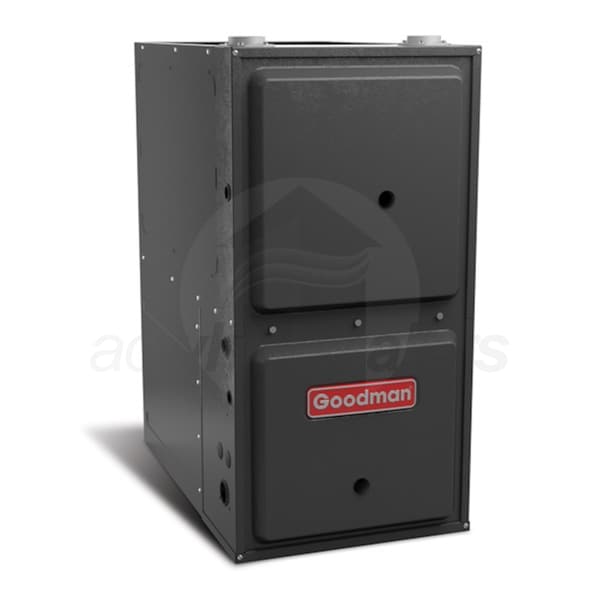

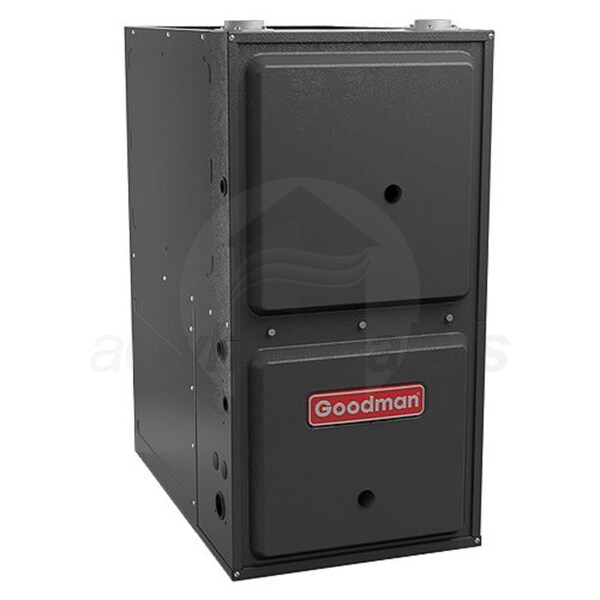

    (1) Goodman 97% AFUE 80,000 BTU Variable Speed Downflow Gas Furnace (GCVM970804CN)
  • product image
    (1) Goodman 3.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130421)
  • product image

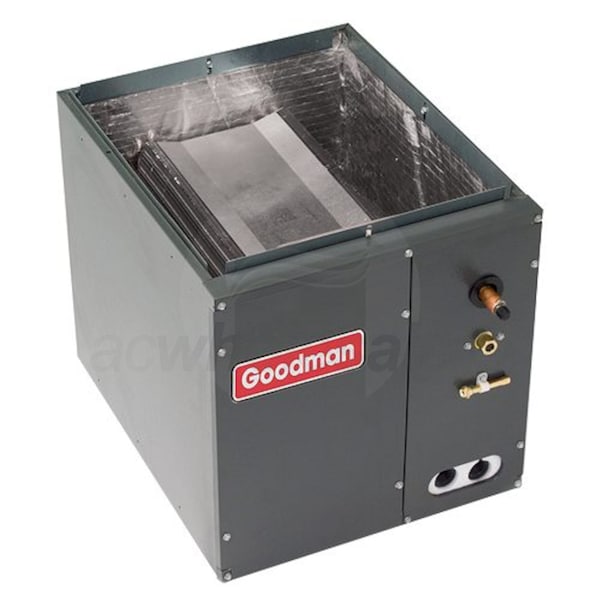

    (1) Goodman 3.5 Tons 21 in. Wide Air Conditioner Cased Coil (CAPFA4226C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1342GCVM97080D

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX13 air conditioner, a GCVM97 furnace, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1342GCVM97080D air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX130421 GCVM970804CN CAPF3743C6
  • AHRI Reference Number: 7353977 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Model GCVM970804CN has been temporarily suspended from production.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GCVM970804CN Specifications
    GSX130421 Specifications
    CAPFA4226C6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating
    Blower Motor
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Downflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    97 %
    Capacity Learn More
    3.5 Tons
    Cooling Capacity
    40500 BTU
    Nominal Cooling Capacity
    42000 BTU
    Heating BTU
    80000
    SEER Learn More
    13.5
    EER Learn More
    11.5
    Maximum Air Flow
    1300 CFM
    Dimensions
    Product Weight
    378 Pounds
    Shipping Weight
    396 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205354039
    General Information
    Type
    Gas Furnace
    Product Line
    GCVM97
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Modulating
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    97 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    77600 BTU
    Low Fire Input
    40000 BTU
    Low Fire Output
    38800 BTU
    Maximum Air Flow
    1600 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    11.6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    144 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7424271
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX13
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.5 Tons
    Cooling BTU
    42000
    Cooling Capacity
    42000 BTU
    SEER Learn More
    13.0
    EER Learn More
    11.0
    Maximum Sound Level Learn More
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    24 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    171 Pounds
    Shipping Weight
    189 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-22/R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.5 Tons
    Cooling BTU
    42000
    Nominal Minimum Cooling Capacity
    42000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    26 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    44 Pounds
    Shipping Weight
    54 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    10 Years
