Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Downflow Installation

Model: GSX13018 CAPT3131B GCVC960603 Item Number: 85793
Goodman GSX13018 CAPT3131B GCVC960603
PREVIOUS
NEXT
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Enlarge Image
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    267 Pounds Learn More
    267 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
Bundle Includes 3 items
  • product image
    (1) Goodman 96% AFUE 60,000 BTU Variable Speed Downflow Gas Furnace (GCVC960603BN)
  • product image
    (1) Goodman 1.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130181)
  • product image
    (1) Goodman 2.5 Ton 17.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPT3131B4)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX13018 CAPT3131B GCVC960603

The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

PLEASE NOTE

The US Department of Energy (DOE) regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions for the United States. We are required to abide by these regulations when selling these types of products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you live in any of the following states - AL, AR, DC, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX or VA and are planning to have the product shipped to those states it is strongly recommend you call us or email us before you place your order so we can offer an alternate product. We unfortunately will not ship equipment that falls under the minimum DOE requirements to those states. (Learn More)

The Goodman GSX130181 Air Conditioner Condenser with a SEER rating up to 14 SEER will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSX130181 air conditioner condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX13 GSX130181 air conditioner condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand air conditioners such as the GSX130181 take pride in its company heritage.

Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130181 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.

When you think of the Goodman GSX130181 air conditioner condenser, consider it as the art of precision

Energy-Efficient Scroll Compressor- Inside of the Goodman GSX130181 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130181 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.

Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

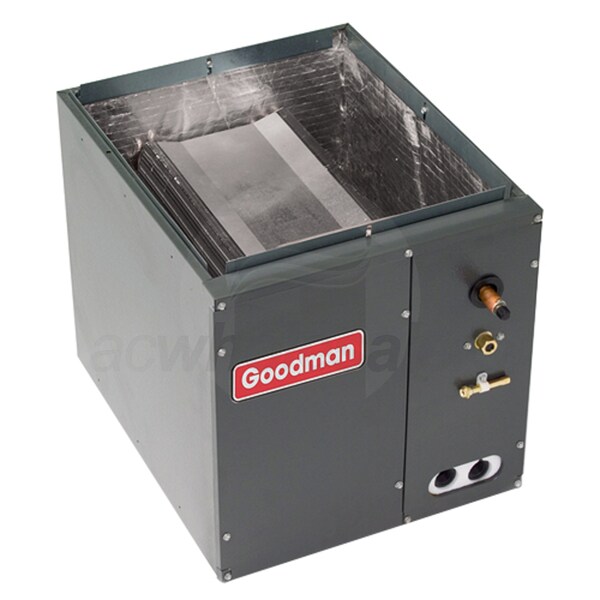

Overview for Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed

The Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Using this Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed is a breeze.

The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installeds have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coil with TXV (Thermal Expansion Valve) Installeds use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.

The Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed is home comfort that won't blow your budget.

The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed is designed to function with a multitude of heating and cooling Goodman branded products. Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum Evaporator Coil with TXV (Thermal Expansion Valve) Installed is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.

Goodman takes pride in its company heritage when manufacturing the Goodman CAPT3131B4 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil with TXV (Thermal Expansion Valve) Installed.

Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

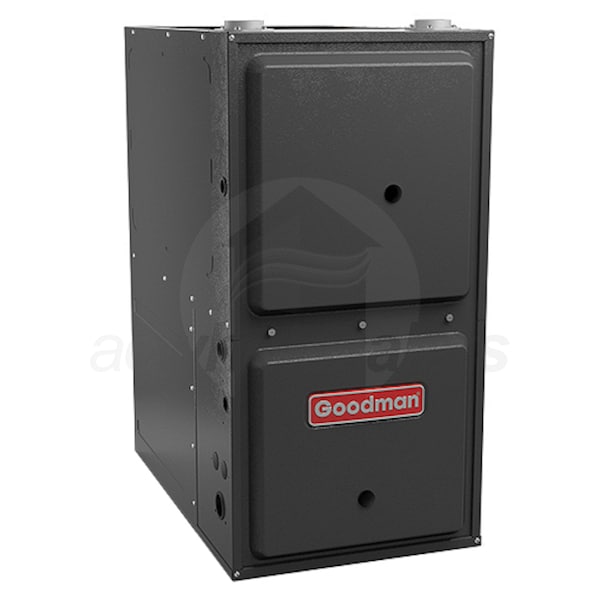

Overview for Goodman GCVC960603BN Gas Furnace Heater

The Goodman GCVC96 High-Efficiency Gas Furnace with two-stage gas valve and a variable-speed circulating blower provides efficient and economical performance. Unlike single-stage gas furnaces that operate 'all on' or 'all off,' a Goodman two-stage gas furnace typically runs at the lowest possible speed to precisely maintain a constant, steady temperature in your home. A two-stage gas furnace optimizes its heating output to maximize indoor comfort and lower energy costs. When operating at low-speed levels, your Goodman gas furnace consumes less energy to keep your home comfortable. In addition, the 96% AFUE rating on this gas furnace means that 96 cents of every $1.00 of heating energy expense warms your home.

The Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN Gas Furnace Heaters.

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman Gas Furnace Heaters live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

The Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN Gas Furnace Heaters will keep you as warm as you wish.

The best gas furnace heater is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible SeriesGCVC960603BN is loaded with features designed to provide outstanding performance for years to come. Goodman Gas Furnaces use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy efficient warming trend that’s designed to stay for many years.

Do high utility bills make you hot blooded? Turn to a Goodman GCVC960603BN Gas Furnace!

High heating bills burn us up, too. Goodman offers a complete line of gas furnace heaters that are priced to help add comfort to your budget. Goodman wants you to smile every time you open your utility bill, so Goodman designed the GCVC960603BN gas furnace units with proven energy efficient technology. Goodman brand heaters and air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget.

Goodman brand heaters such as the GCVC960603BN Gas furnace take pride in its company heritage.

The Goodman GCVC960603BN air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and that’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

The Goodman GCVC960603BN gas furnaces simply work the way they’re supposed to, making each one a thing of beauty. When you talk about the Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN it’s considered as the art of precision.

Aluminized Steel Tubular Primary Heat Exchanger - Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.

Two-Stage Gas Valve - The Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.

ComfortNet Communicating System Compatible - Continuously monitors system performance and allows remote control of system as an option.

Self-calibrating modulating gas valve - Auto-configures for each installation.

Durable Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light.

Quiet, Two-Stage, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.

Efficient and Quiet Variable-Speed ECM Circulator Motor - Provides quiet system startup and shutdown with highly efficient performance.

Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GCVC960603BN furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN gas furnace.

Thermally-Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

But best of all, this Goodman Goodman GCVC96 96% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC960603BN gas furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

Bundle Includes 3 items
  • product kit image
    Goodman 96% AFUE 60,000 BTU Variable Speed Downflow Gas Furnace
    Model: GCVC960603BN
    Item Number: 26593
    Quantity: 1
  • product kit image
    Goodman 1.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant
    Model: GSX130181
    Item Number: 26116
    Quantity: 1
  • product kit image
    Goodman 2.5 Ton 17.5 in. Wide Air Conditioner Evaporator Cased Coil
    Model: CAPT3131B4
    Item Number: 26441
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
General Information
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA, TX and UT)
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling Capacity
18000 BTU
Nominal Cooling Capacity
18000 BTU
Heating BTU
60000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.5
Maximum Air Flow
600 CFM
Dimensions
Product Weight
267 Pounds
Shipping Weight
282 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7353540
General Information
Type
Gas Furnace
Product Line
GCVC96
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
57600 BTU
Low Fire Input
42000 BTU
Low Fire Output
40320 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
119 Pounds
Shipping Weight
119 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7368838
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
Overview
Product Category
Furnace
General Information
Type
Condenser
Product Line
GSX13
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
25 3/4 Inches
Product Width
23 Inches
Product Depth
23 Inches
Product Weight
102 Pounds
Shipping Weight
117 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Evaporator Coil
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
22 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
46 Pounds
Shipping Weight
56 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals
View More
Share
×
Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Downflow Installation
Goodman GSX13018 CAPT3131B GCVC960603
Loading
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Watch Video
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
Goodman GSX13018 CAPT3131B GCVC960603
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
