Goodman High Efficiency - 2.5 Ton Cooling - 80,000 BTU/Hr Heating - Air Conditioner & Furnace Package - 15 SEER - 96% AFUE - Upflow

Model: GFC159628080U-3 Item Number: 56794
Ask a Question
Goodman GFC159628080U-3
PREVIOUS
NEXT
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Enlarge Image
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
Goodman GFC159628080U-3
View All
Originally $3,536.00
Add to Cart for Lower Price
synchrony card icon
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman High Efficiency - 2.5 Ton Cooling - 80,000 BTU/Hr Heating - Air Conditioner & Furnace Package - 15 SEER - 96% AFUE - Upflow
Goodman High Efficiency - 2.5 Ton Cooling - 80,000 BTU/Hr Heating - Air Conditioner & Furnace Package - 15 SEER - 96% AFUE - Upflow Model: GFC159628080U-3 Item Number: 56794
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    318 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 4 items
  • product image
    (1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960803BN)
  • product image
    (1) Goodman 2.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160301)
  • product image
    (1) Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF3137B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GFC159628080U-3

A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a GSX16 air conditioner, a GMEC96 furnace, and a cased evaporator coil. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GFC159628080U-3 an excellent addition to nearly any household looking to reduce their energy spending.

Product Features

Advanced Coil Design
The coils of the GSX160301 and CAPF3137B6 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.

High-Efficiency Compressor
The GSX16 air conditioner utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

Advanced Heat Exchanger Design
The GMEC96 furnace employs a reliable dual-diameter tubular primary heat exchanger design. Aluminized-steel is used in construction for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity. A corrosion-resistant stainless steel secondary heat exchanger improves the efficiency of this unit even further by capturing heat that less advanced furnaces vent out of the home.

Energy-Efficient Circulation
PSC blower motors are energy hogs. The ECM motor in the GMEC960803BN provides more efficient, more intelligent airflow for your home.

Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX160301 and the GMEC960803BN feature components that reduce operational noise without compromising performance.

Secure Cabinet
All three components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the GMEC960803BN's cabinet is reinforced to prevent air and sound leakage.

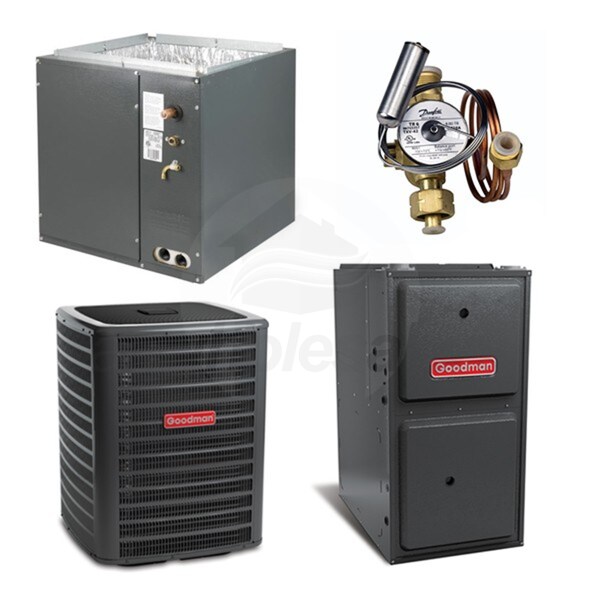

Product Includes
  • (1) Goodman GSX160301 Air Conditioner
  • (1) Goodman GMEC960803BN Gas-Fired Furnace
  • (1) Goodman CAPF3137B6 Evaporator Coil
  • (1) Goodman TXV-30 Thermostatic Expansion Valve
  • The manufacturer model number(s): Goodman GSX160301 GMEC960803BN CAPF3137B6 TXV-30
  • AHRI Reference Number: 7489451 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GMEC960803BN Specifications
    GSX160301 Specifications
    CAPF3137B6 Specifications
    TXV-30 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    2.5 Tons
    Cooling Capacity
    28600 BTU
    Nominal Cooling Capacity
    30000 BTU
    Heating BTU
    80000
    SEER Learn More
    15.0
    EER Learn More
    12.5
    Maximum Air Flow
    1010 CFM
    Dimensions
    Product Weight
    318 Pounds
    Shipping Weight
    340 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7489451
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    76800 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    53760 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    118 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7423788
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX16
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling BTU
    30000
    Cooling Capacity
    29000 BTU
    SEER Learn More
    16.0
    Maximum Sound Level Learn More
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    17 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    149 Pounds
    Shipping Weight
    167 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 - 3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TXV
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
