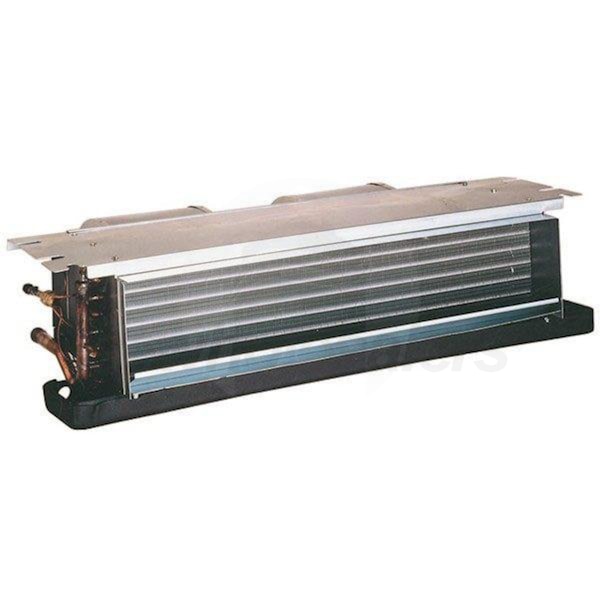

Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler w/ 6 kW

Model: ACNF300616 Item Number: 26330
Goodman ACNF300616
PREVIOUS
NEXT
Goodman ACNF300616
Enlarge Image
Our Price: $726.00
synchrony card icon
$121 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-6 Weeks
Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler w/ 6 kW
Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler w/ 6 kW Model: ACNF300616 Item Number: 26330
$726.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Pro Installation Learn More
Pro Installation
Sometimes we all need a little help with projects around the house. Who better than the Pros to install your home comfort products. Let one of our installation coordinators reach out to you and discuss which options are available in your area. Shop, Save, and Install. It's that easy!Learn More
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    46 Pounds Learn More
    46 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051523319
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Electric Heat
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ACNF300616

Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF300616 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Product Features
  • Check flowrater for heat pump and cooling-only
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Available with and without heat
  • AHRI Certified
  • ETL Certified
  • Primary/secondary drain connection in a hightemperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Our SKU number(s): Goodman ACNF300616
  • The manufacturer model number(s): Goodman ACNF300616
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051523319
    General Information
    Type
    Air Handler
    Product Line
    ACNF
    Product Category
    Air Handler
    Refrigerant Type
    R-22/R-410A
    Blower Motor Speed
    Multi-Speed
    Motor Type
    PSC
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Ceiling Mounted
    Electric Heat
    Included
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling BTU
    30000
    Electric Heat Capacity
    6.0 kW
    Maximum Air Flow
    1005 CFM
    Minimum Air Flow
    890 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    29.9 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Drain Outlet Diameter
    3/4 Inch
    Product Height
    10 Inches
    Product Width
    49 1/4 Inches
    Product Depth
    11 3/8 Inches
    Product Weight
    46 Pounds
    Shipping Weight
    79 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
