Fujitsu Wall Mount 3-Zone System - 36,000 BTU Outdoor - 7k + 7k + 24k Indoor - 20 SEER

Model: F3L36W07072400 Item Number: 85174
Ask a Question
Fujitsu F3L36W07072400
PREVIOUS
NEXT
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Enlarge Image
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
Fujitsu F3L36W07072400
View All
Our Price: $5,612.95
synchrony card icon
$71 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu Wall Mount 3-Zone System - 36,000 BTU Outdoor - 7k + 7k + 24k Indoor - 20 SEER
Fujitsu Wall Mount 3-Zone System - 36,000 BTU Outdoor - 7k + 7k + 24k Indoor - 20 SEER Model: F3L36W07072400 Item Number: 85174
$5,612.95
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    274 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    Halcyon HFI XLTH
View More
Bundle Includes 4 items
  • product image
    (1) Fujitsu - 36k BTU - XLTH Outdoor Condenser - For 2-4 Zones (AOU36RLXFZH)
  • product image

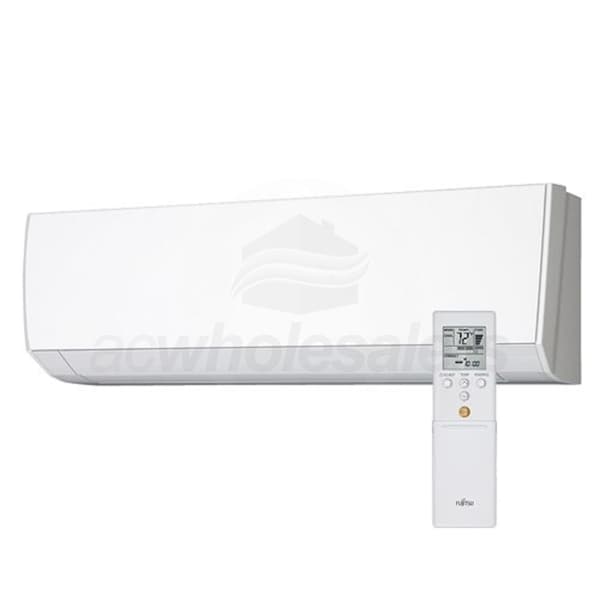

    (1) Fujitsu 24k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU24RLF)
  • product image

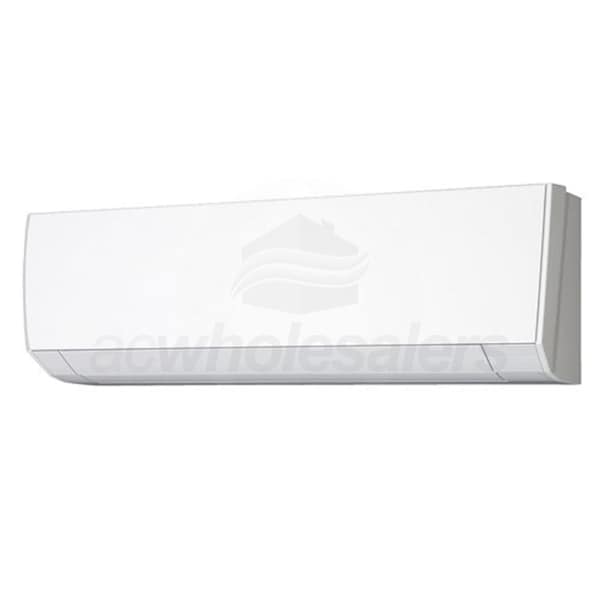

    (2) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F3L36W07072400

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F3L36W07072400 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipement, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
AOU36RLXFZH Specifications
ASU24RLF Specifications
ASU7RLF1 Specifications
General Information
Type
Wall Mounted
Product Line
Halcyon HFI XLTH
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
7 + 7 + 24
Base Pan Heater Included
Yes
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling Capacity
35200 BTU
Heating Capacity
36400 BTU
SEER Learn More
20.0
EER Learn More
13.0
HSPF Learn More
10.3
Cooling Power Input
2760 Watts
Heating Power Input
2720 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
274 Pounds
Shipping Weight
274 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8908615
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI XLTH
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Product Height
39 5/16 Inches
Product Width
38 3/16 Inches
Product Depth
14 9/16 Inches
Product Weight
205 Pounds
Shipping Height
45 3/4 Inches
Shipping Width
45 1/4 Inches
Shipping Depth
18 13/16 Inches
Shipping Weight
215 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

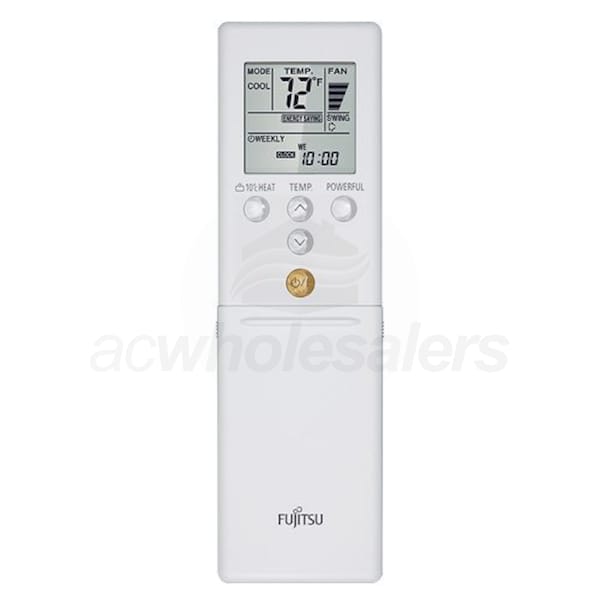

Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
659 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
33 dB
Maximum Sound Level Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 5/8 Inches
Product Width
39 1/4 Inches
Product Depth
9 Inches
Product Weight
31 Pounds
Shipping Height
12 9/16 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
330 CFM
Minimum Air Flow
182 CFM
Minimum Sound Level
21 dB
Maximum Sound Level Learn More
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 9/16 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
23 Pounds
Shipping Width
34 13/16 Inches
Shipping Height
10 5/8 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
