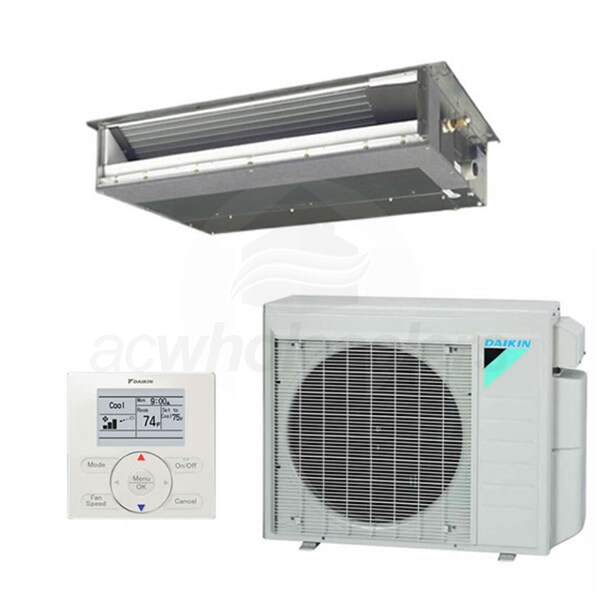

Daikin - 24k BTU Cooling + Heating - Aurora Series Concealed Duct Air Conditioning System - 18.6 SEER

Model: DL24MVJU Item Number: 105140
Ask a Question
Daikin DL24MVJU
PREVIOUS
NEXT
Daikin DL24MVJU
Daikin DL24MVJU
Daikin DL24MVJU
Enlarge Image
Daikin DL24MVJU
Daikin DL24MVJU
Daikin DL24MVJU
View All
Our Price: $3,752.16
synchrony card icon
$66 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Daikin - 24k BTU Cooling + Heating - Aurora Series Concealed Duct Air Conditioning System - 18.6 SEER
Daikin - 24k BTU Cooling + Heating - Aurora Series Concealed Duct Air Conditioning System - 18.6 SEER Model: DL24MVJU Item Number: 105140
$3,752.16
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    212 Pounds Learn More
    Type
    Concealed Duct
    Product Line
    Aurora
View More
Bundle Includes 3 items
  • product image
    (1) Daikin Aurora - 24k BTU Outdoor Condenser - Single Zone Only (RXL24UMVJU)
  • product image
    (1) Daikin Aurora - 24k BTU Concealed Duct Unit - Single Zone Only (FDMQ24RVJU)
  • product image
    (1) Daikin Wired Remote Controller Ceiling Cassette Units (BRC1E73)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin DL24MVJU

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The Aurora Series pairs Daikin's latest in condensing technology with quiet, easy to install, concealed duct indoor units. The Aurora Series outdoor condenser is engineered to provide efficient heating and cooling for your home even in extreme weather conditions while guaranteeing long, reliable, service life. Inside your home, Daikin's concealed duct units offer a simple design meant to blend into any setting. Combined with their standard quiet operation, these units are designed to keep your home comfortable without drawing attention. Advanced filtration technology cleans your home's air at the same time it is conditioned, allowing you and your family to breathe easy without fear of lingering pollutants.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 3 items
  • product kit image

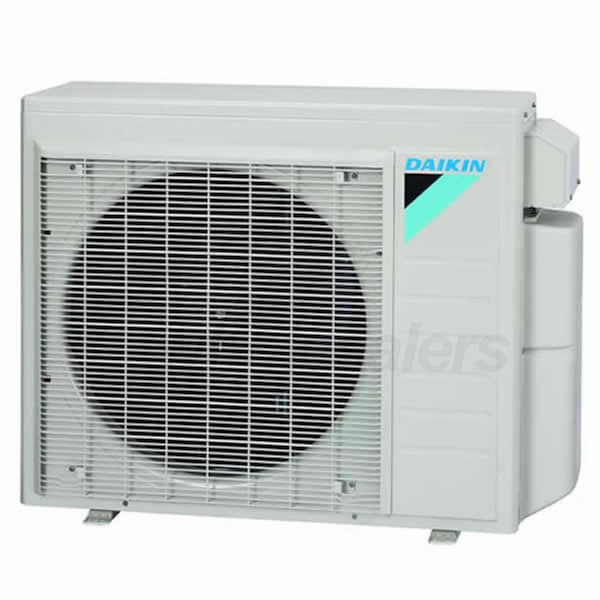

    Daikin Aurora - 24k BTU Outdoor Condenser - Single Zone Only
    Model: RXL24UMVJU
    Item Number: 105119
    Quantity: 1
  • product kit image
    Daikin Aurora - 24k BTU Concealed Duct Unit - Single Zone Only
    Model: FDMQ24RVJU
    Item Number: 105117
    Quantity: 1
  • product kit image
    Daikin Wired Remote Controller Ceiling Cassette Units
    Model: BRC1E73
    Item Number: 68363
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
RXL24UMVJU Specifications
FDMQ24RVJU Specifications
BRC1E73 Specifications
General Information
Type
Concealed Duct
Product Line
Aurora
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
21200 BTU
Heating Capacity
24000 BTU
SEER Learn More
18.6
EER Learn More
12.5
HSPF Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
212 Pounds
Shipping Weight
217 Pounds
Certifications
AHRI Reference Number
204718024
General Information
Type
Outdoor Condenser
Product Line
Aurora
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Minimum Sound Level
55 dB
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
98.5 Feet
Product Height
28 15/16 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
130 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Compressor Warranty
7 Years
General Information
Type
Concealed Duct
Product Line
Aurora
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
798 CFM
Minimum Air Flow
558 CFM
Minimum Sound Level
40 dB
Maximum Sound Level Learn More
40 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 Inch
Product Height
9 5/8 Inches
Product Width
39 3/8 Inches
Product Depth
31 1/2 Inches
Product Weight
82 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hardwired
Interface
Buttons
Minimum Setpoint Range
60 F
Maximum Setpoint Range
90 F
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
3/4 Inch
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
5 Years
