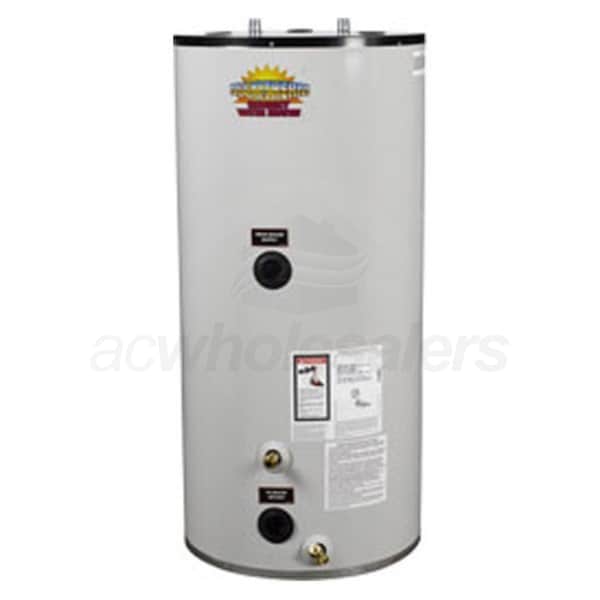

Crown Boiler Co. 114 gal Indirect Water Heater

Model: MT120GBC Item Number: 50218
Crown Boiler Co. MT120GBC
Crown Boiler Co. MT120GBC
Enlarge Image
Our Price: $3,987.00
synchrony card icon
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 2-3 Weeks
Crown Boiler Co. 114 gal Indirect Water Heater
Crown Boiler Co. 114 gal Indirect Water Heater Model: MT120GBC Item Number: 50218
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Indirect-Fired
Tank Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
View More


Overview for Crown Boiler Co. MT120GBC

The Maxi-Therm indirect fired hot water heater from Crown is designed from the ground up to maximize longevity in every way possible. Both the tank and the internal coil are coated with a porcelain enamel, preventing corrosive materials in a home's water supply from reacting with the metals within the water heater. The tank also contains three sacrificial anode rods, reactive rods that descend into the tank and neutralize corrosives before they have a chance to damage your water heater. Combined with two inches of CFC-free foam insulation all around the tank, the Maxi-Therm is an ideal long term water heater solution.
  • Two Inch Thick Insulation Layer
  • Crown's Maxi-Therm heaters are lined with a two inch thick layer of insulation, keeping the water in your water heater hot for hours on end during standby periods.
  • Rugged Steel Tank
  • The outer shell of the Maxi-Therm tank is constructed from high grade steel, a material proven in thousands of installations to be durable and efficient.
  • Three Sacrificial Anode Rods
  • The Maxi-Therm water heater comes with three replaceable sacrificial anode rods, dramatically increasing the longevity of the water heater by removing corrosive materials before they can cause damage..
  • Porcelain Enamel Coated Coil
  • The coil on the inside of the Maxi-Therm water heater is coated with a porcelain enamel, working with the anode rods to prevent corrosion.
  • Specifications
    View More


    Product Category
    Water Heater - Indirect-Fired
    General Information
    Indirect Water Heater
    Product Line
    Maxi-Therm 2
    Product Category
    Water Heater - Indirect-Fired
    Medium Learn More
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Coils Quantity
    Connection Type
    Mount Type
    Stainless Steel
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    408 Gallons
    Continuous Recovery Rate
    325 Gallons
    Electrical Data
    120 Volts
    60 Hz
    Storage Volume
    114 Gallons
    Cold Water Inlet
    1 Inch
    Hot Water Outlet
    1 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Diameter
    28 1/4 Inches
    Product Height
    63 1/4 Inches
    Product Width
    28 1/4 Inches
    Product Depth
    28 13/48 Inches
    Shipping Weight
    355 Pounds
    Country of Origin
    United States
    ETL Listed
    AHRI Certified
    Warranty Information
    Vessel Warranty
    10 Years
    View More
