New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
158 Pounds 158 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Indirect Water Heater
Product Line
Mega-Stor
View More
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features

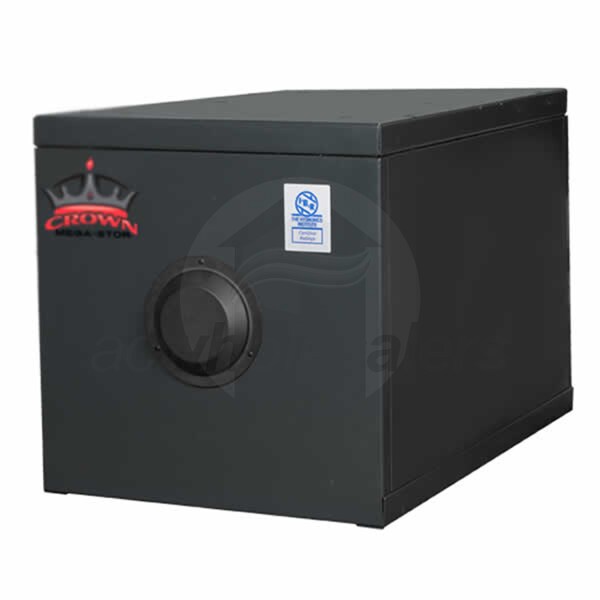

Overview for Crown Boiler Co. MSH-53H
Crown's Mega-Stor indirect fired hot water heaters are a perfect complement to a Crown boiler, providing enough hot water to satisfy an entire family's hot water needs. The tank is lined with two inch thick polystyrene insulation, to keep water hot for hours. The stainless steel outer shell provides years of structural integrity. The coil itself is made from smooth surfaced stainless steel, maximizing heat transfer for a quick recovery rate. For any home heated by a boiler, the Mega-Stor is the best option for quick and efficient hot water production.
Product Features
Removable Inspection Cap
Bottom Drain Outlet
Fast Heating
Stainless Steel Coil
TGI Welded and Passivated
Specifications
Specifications
General Information
Type
Indirect Water Heater
Product Line
Mega-Stor
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Mount Type
Floor
Material
Stainless Steel
Performance
First Hour Delivery First Hour DeliverySometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
226 Gallons
Continuous Recovery Rate
179 Gallons
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Storage Volume
51 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Diameter
24 3/8 Inches
Product Height
24 3/8 Inches
Product Width
23 7/8 Inches
Product Depth
23 7/8 Inches
Product Weight
158 Pounds
Shipping Weight
168 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
