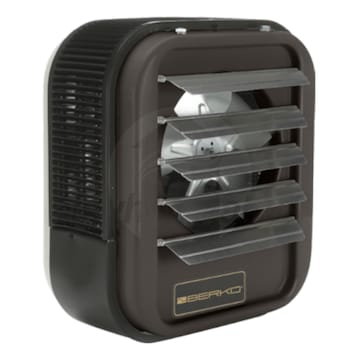

Berko 5 kW Electric Unit Heater 208V 60Hz 1ph HUHAA
Model: HUHAA520Item Number: 79543
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Product Category
Unit Heater
UPC
685360036977
View More
Input Capacity (kW)
Voltage / Phase
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Berko HUHAA520
Marley's Berko HUHAA series electric unit heater is a heavy-duty heater designed to heat stores, warehouses, offices, or other large areas. Mount the Berko HUHAA series from a ceiling or wall and control the direction of heat with horizontal and downflow capabilities. Rest easy knowing your Berko HUHAA series unit is made from a heavy gauge die-formed steel housing and an aluminum finned, copper clad heating element to ensure longevity. Provide efficient heat to almost any large space with the Berko HUHAA series unit heater.
Horizontal and Downflow Capability
Louvers adjust up and down for better control of heat direction with stops to prevent complete closing. Louvers also adjust individually for further control of air flow.
Long Lasting
The HUHAA series is made from a heavy gauge die-formed steel housing, a rugged totally enclosed motor, and an aluminum-finned, copper clad steel sheath heating element, ensuring the longevity of your Berko HUHAA unit heater.
Quiet Operation
The HUHAA is equipped with dynamically balanced fan blades to ensure minimum noise, turbulence, and maximum air flow.
Automatic Fan Delay
To prevent the circulation of cold air, the fans are put on hold until the heating element is warm. The fans then begin to run until the thermostat senses that the heating element is cool again.
1 or 3 Phase
1 or 3 Phase power delivers the option of greater efficiency by using alternating currents, saving you money on heating, something a single phase cannot do.
Thermal Cutout
An automatic reset, linear thermal cut-out capillary type, provides protection over the entire length of element area adding safety and longevity.
Product Note
B10 mounting bracket required to mount product on ceiling or wall
Specifications
Specifications
Overview
Product Category
Unit Heater
UPC
685360036977
General Information
Type
Heavy Duty
Product Line
HUHAA
Product Category
Unit Heater
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
17100 BTU
Heating Capacity (kW)
5 kW
Air Throw
12 Feet
Maximum Air Flow
350 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Height
8 1/2 Inches
Product Width
14 Inches
Product Depth
16 Inches
Shipping Weight
24 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
1 Year
Heating Element Warranty
5 Years
